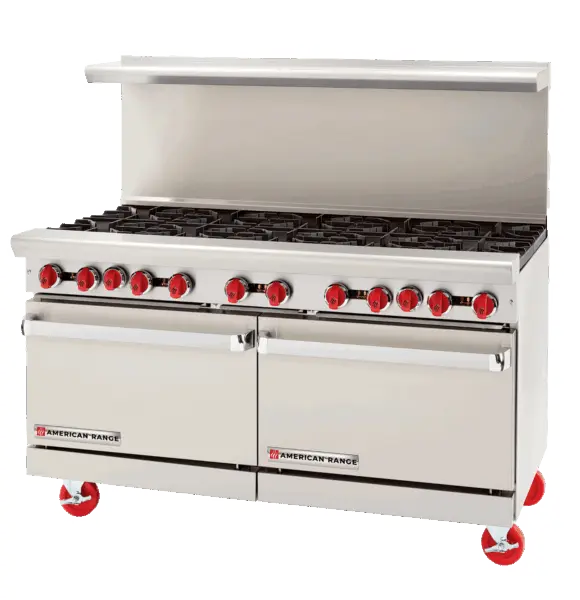

American Range 10 Burner AR-10

The American Range restaurant range measures 60" x 32.6" x 56" and features a stainless steel front, sides, backriser, high shelf, and 6" adjustable legs. A full‑width removable drip pan simplifies cleaning. Heavy‑duty 12" x 12" cast‑iron grates provide durability and stability, while high‑temperature, cool‑touch burner knobs ensure safe operation. The standard 35,000 BTU/hr oven includes a porcelain interior and porcelain‑lined door panel. The oven cavity measures 26.6"W x 22.6"D x 13.6"H and comes equipped with two racks and a thermostat adjustable from 250°F to 500°F. The oven door features a spring‑assisted, counterweight mechanism that requires no adjustment.

Model: AR-10
Burners: 10
BTU: 32,000 Per Burner & 35,000 Per Oven
External Dimensions: 60"W x 28.6"D x 56"H
Internal Oven Dimensions: 26.6"W x 22.6"D x 13.6"H
Crated Weight: 705 lbs
